Technical Overview
Installation type
Built-in
Sound power at max. speed (2010/30/EC)
62 dB
Maximum output air extraction
530 m³/h
Boost position air extraction
750 m³/h
Ventilation type
Convertible
Highlights
Special Features
greater use of the space under the worktop. for optimal visibility and ambience while cooking. high-performance motor with an impressive extraction rate of 750 m3/h with automatic after revert setting Installation typeBuilt-in
Ventilation typeConvertible
Total power of the motors310 W
Controlsglasstouch, touch control
Number of speed settings3-stage + 2 intensive
Maximum output air extraction530 m³/h
Boost position air extraction750 m³/h
Sound power at max. speed (2010/30/EC)62 dB
Sound power boost (2010/30/EC)67 dB
Maximum output recirculating air452 m³/h
Boost position output recirculating500.0 m³/h
Sound power at max. speed (recirculation)72 dB
Sound power boost (recirculation)75 dB
Grease filter materialWashable aluminium
Energy efficiency ratingA
Total annual energy consumption54.2 kWh/annum

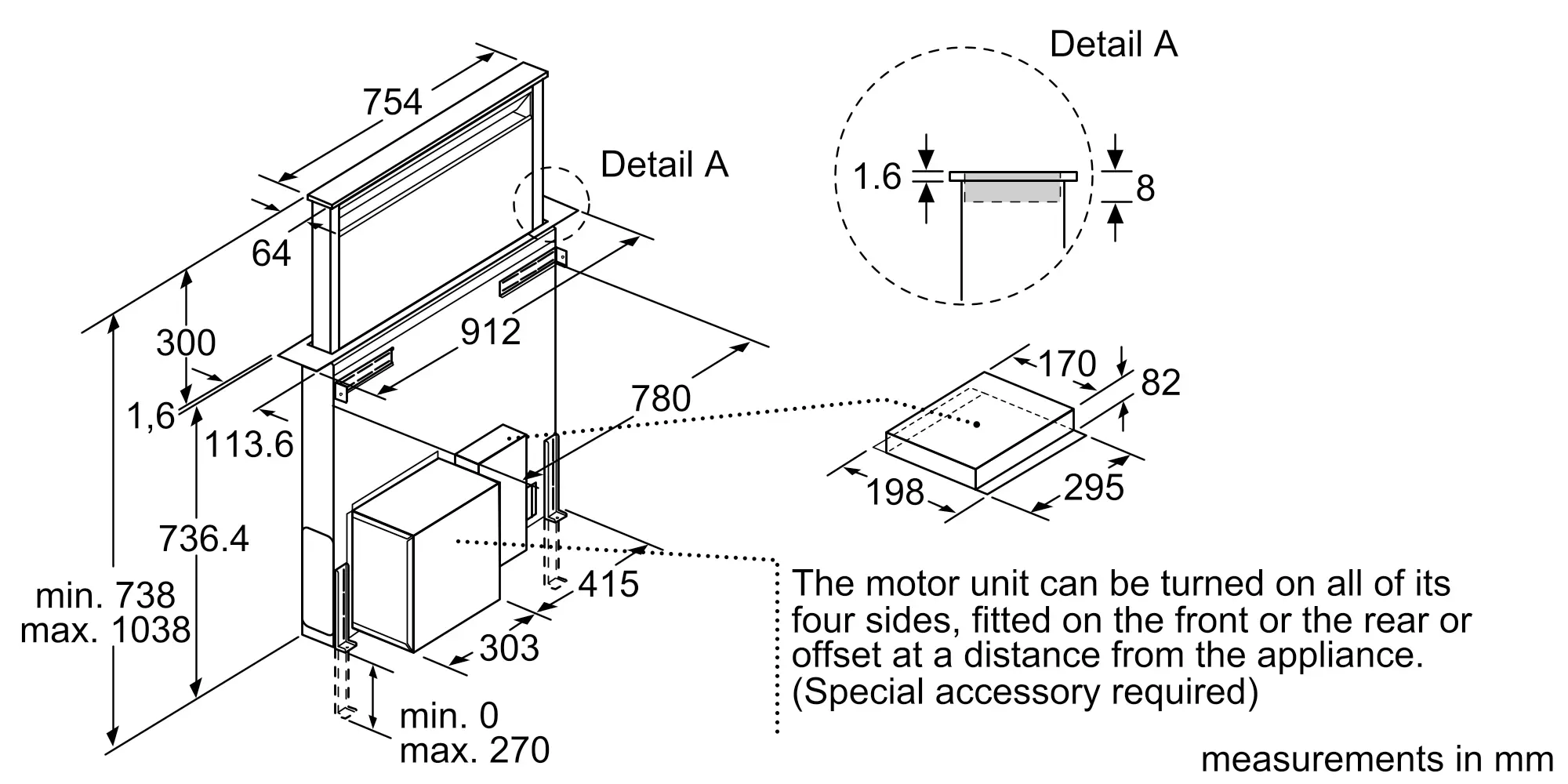

Width of the appliance912 mm
Diameter of air outlet150 mm
Length electrical supply cord150.0 cm
Appliance height exhaust air max1038 mm
Appliance height exhaust air min738 mm
Appliance height recirculating max1038 mm
Appliance height recirculating min738 mm
Maximum width for installation844 mm
Minimum width for installation844 mm
Depth for installation104 mm
Delay Shut off modes10 min
Colour temperatureNeutral (3.500 K)
Illumination type softlightNo
Color temperature control via smartphone with Home ConnectNo
